Mk1 Ford Zodiac Custom Wiring & Control System

Bespoke vehicle wiring and a custom control panel for a specialist Mk1 Ford Zodiac build.

James working on wiring beneath the Mk1 Ford Zodiac
Vehicle / platformMk1 Ford Zodiac
Work carried outBespoke vehicle wiring, custom control panel and associated electrical integration.
CollaboratorsHamilton Racing

Bespoke wiring and control system for a Mk1 Ford Zodiac

This specialist Zodiac build involved custom electrical design and installation carried out alongside Hamilton Racing. Hamilton Racing fabricated the metal control-box enclosure and face plate; JRGMTS designed and built the internal wiring, switchgear and control layout, and carried out the associated vehicle wiring.

The work shown here includes the custom control panel from both sides and James working on the vehicle wiring beneath the car.

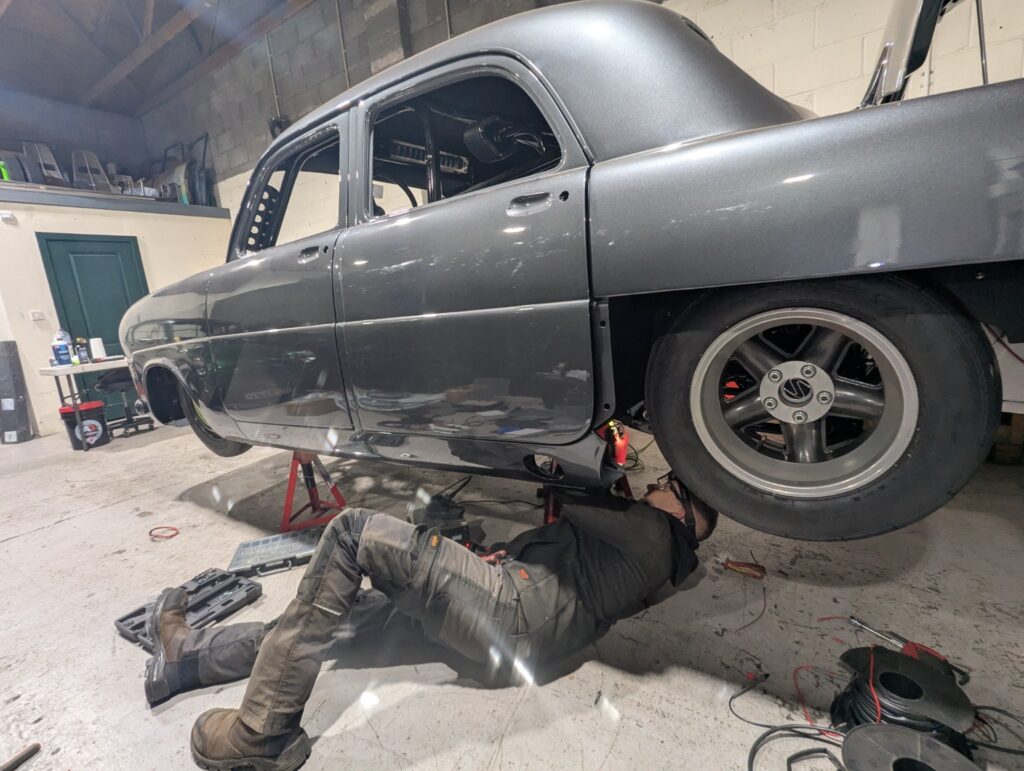

James working on wiring beneath the Mk1 Ford Zodiac
James carrying out wiring work beneath the custom Mk1 Ford Zodiac build.

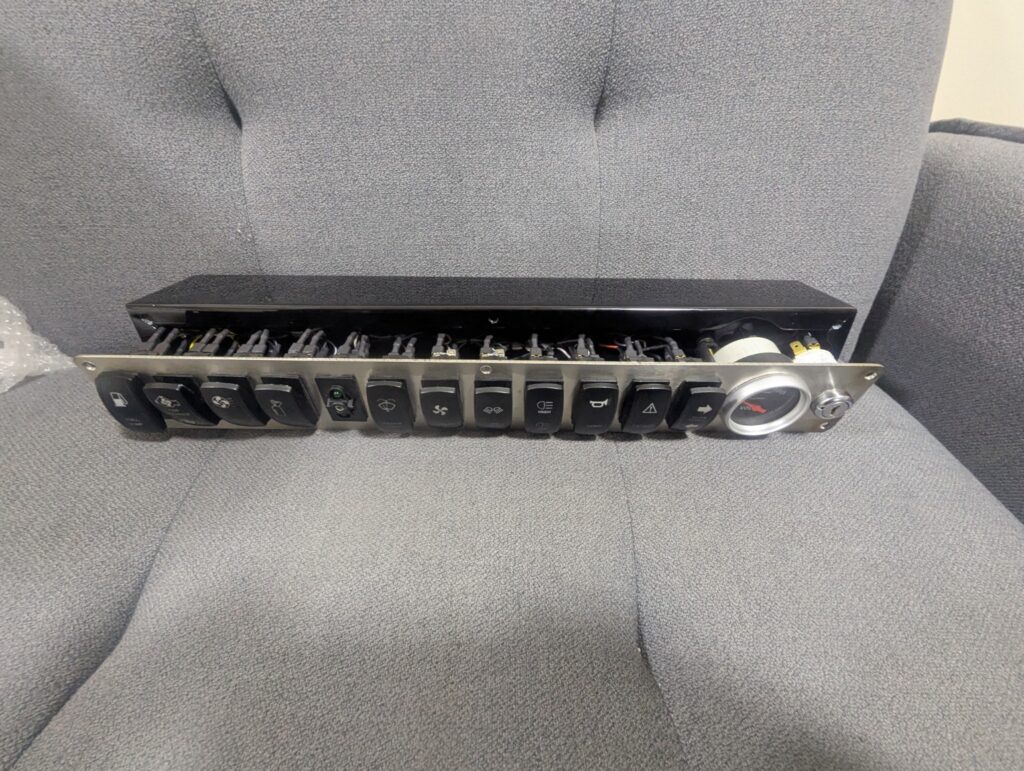

Custom control panel for the Mk1 Ford Zodiac
Finished front face of the bespoke Zodiac control panel. Hamilton Racing fabricated the metal enclosure and face plate; JRGMTS designed and built the wiring and control layout.

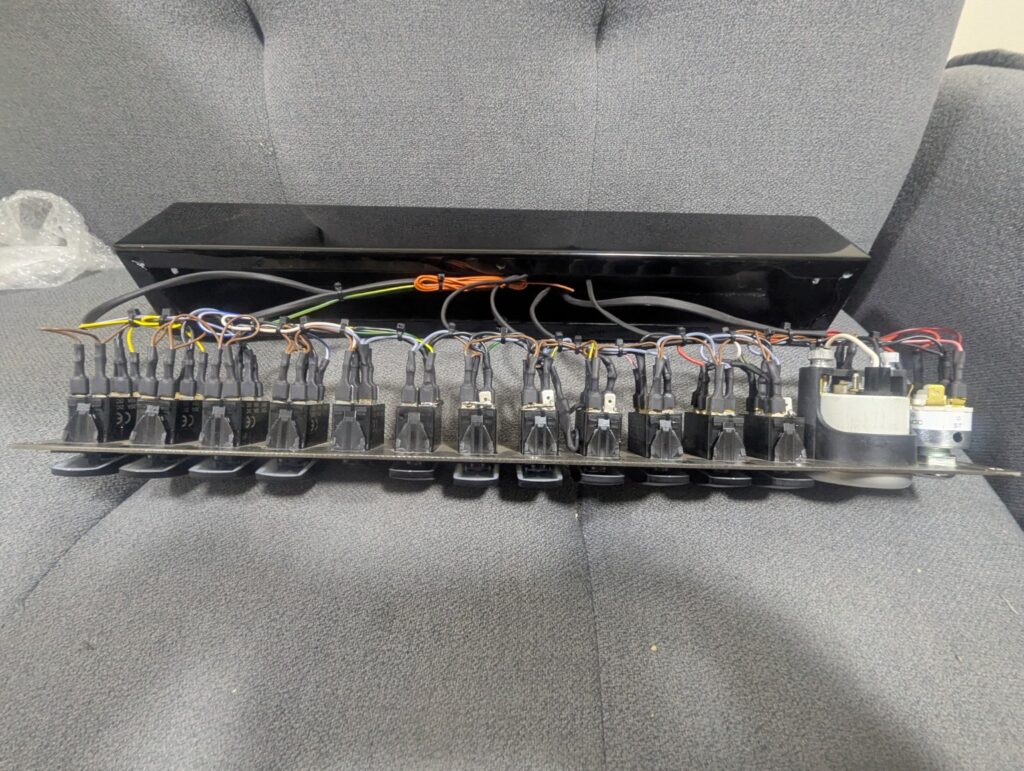

Rear wiring of custom Ford Zodiac control panel
Rear view showing the bespoke switchgear, relays and wiring designed and built by JRGMTS.
